ACOPower 30A MPPT Solar Charge Controller 12V/24V
ACOPower 30A MPPT Solar Charge Controller 12V/24V
ACOPower 30A MPPT Solar Charge Controller 12V/24V
ACOPower 30A MPPT Solar Charge Controller 12V/24V

ACOPower 30A MPPT Solar Charge Controller 12V/24V

Regular price $139.95
Unit price  per

Product Description

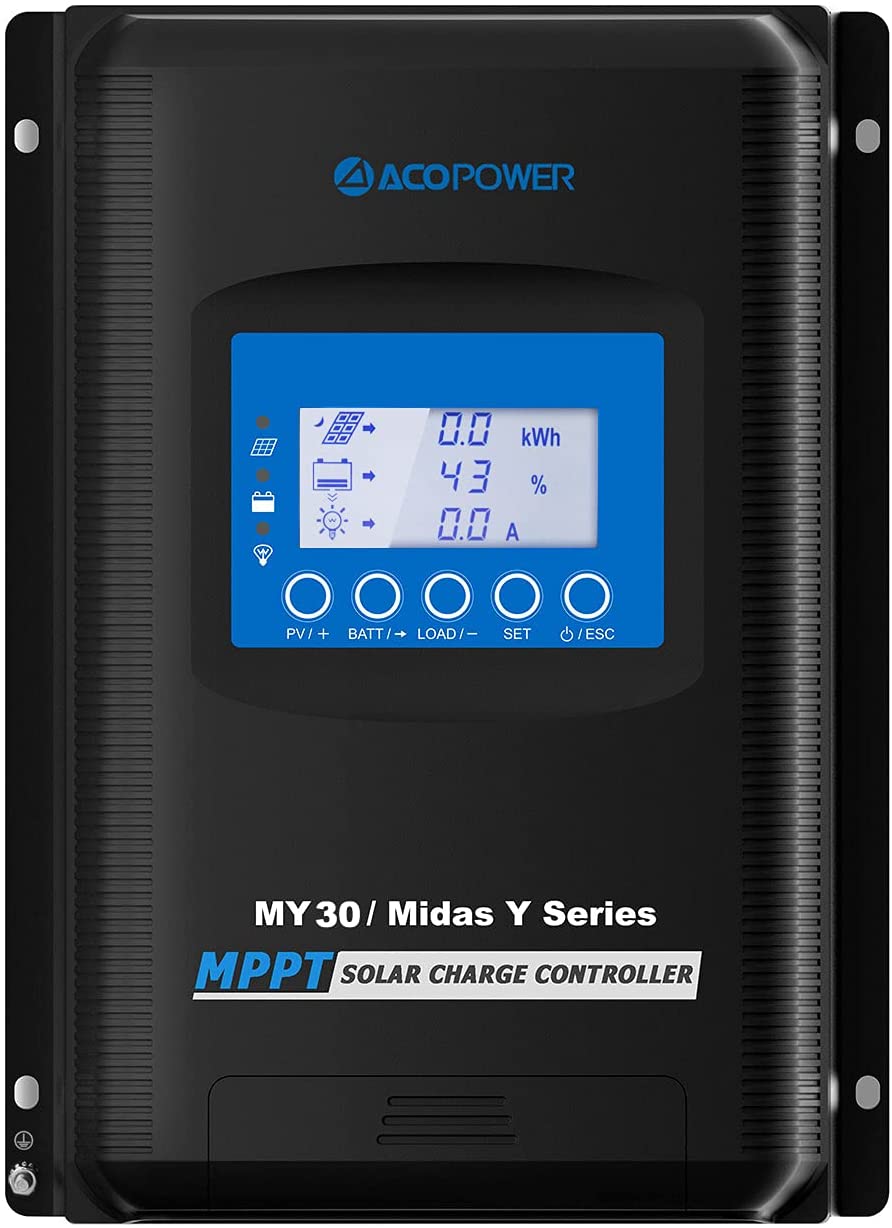

MPPT 30A ACOPOWER Charge Controller
Overview ACOPower MPPT Solar Charge Controllers have a peak efficiency of 99.5% and offers user adjustable settings with a TM-50 Remote! The LCD Screen shows, voltage, solar panel status, battery state of charge, and DC load draw. See Image in photo gallery for all LCD Screen readouts. Compatible with lead acid, AGM, gel, and lithium batteries. Max Charge Rate: 12V/390W,24V/780W


Advanced MPPT technology, much more efficient than PWM especially when wiring Panels in "Series", where Voltage increases, because the MPPT technology converts the excess Voltage to Amperage allowing a continuous Wattage output with minimal  energy loss. (Remember: Voltage x Amperage = Wattage)

Features

  • High tracking efficiency no less than 99.5%
  • Peak conversion efficiency of 98%

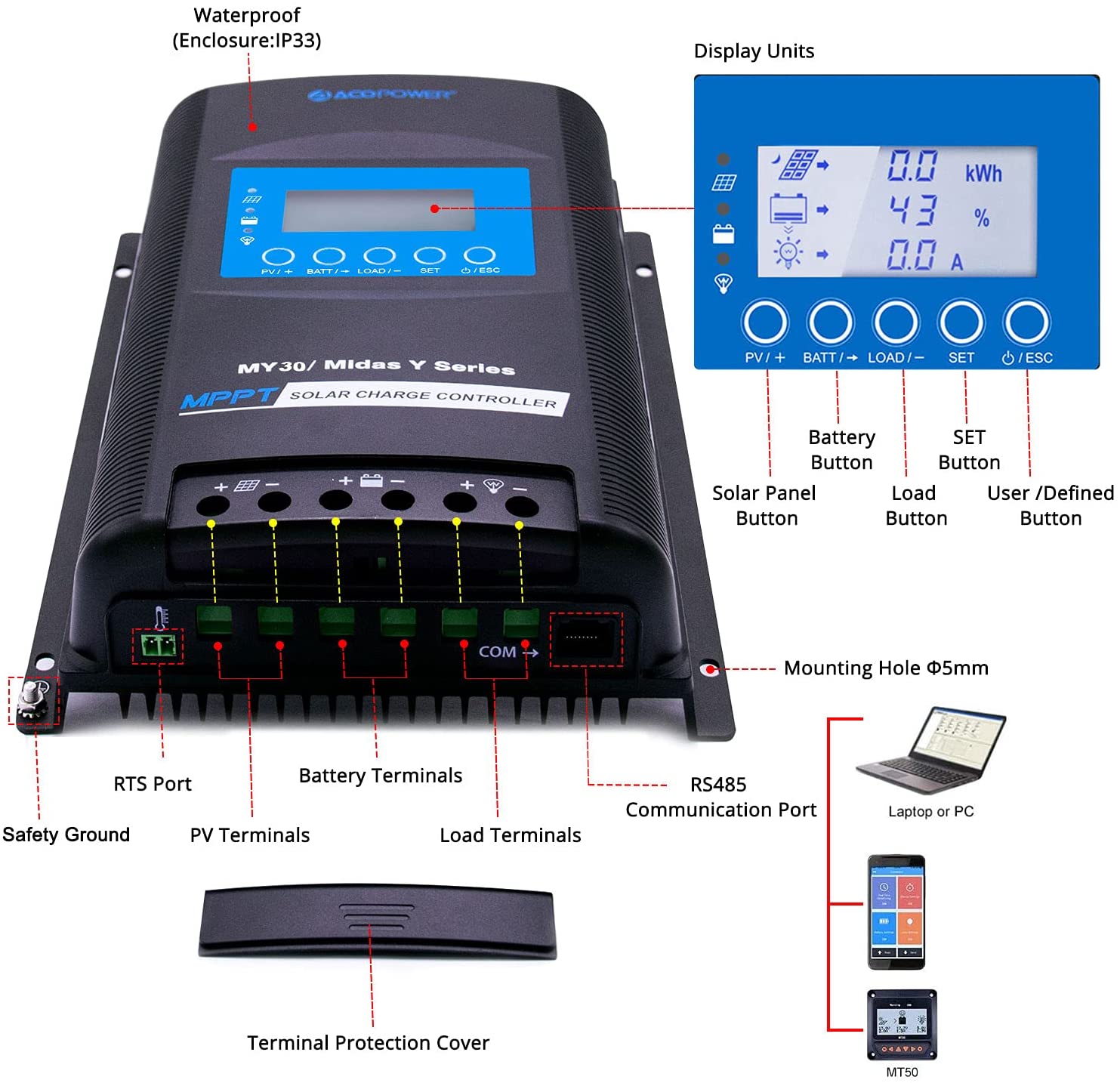

  • Multi-function LCD displays system information intuitively
  • Fully adjustable charging and battery parameters via MT-50 remote meter or PC.
  • User programmable for battery types: Lead-acid, Flood, AGM, Lithium
  • Load Control, Timing and Input/Output Graphing.
  • 3-Stage charge with PWM output
  • Common positive grounding design
  • RS485 port with industrial standard MODBUS open architecture.


Technical Specs

Rated charge current: 30A
Max Charging Output : 12V/390W,24V/780W
Max. PV Input: 12V/1170, 24V/2340W
Max.PV open circuit voltage: 100VDC
Battery voltage range: 8V~32V
Enclosure: IP30


Charge Controller Electronic protections

PV short circuit protection
PV reverse polarity protection
Battery over voltage protection
Battery over discharge protection
Battery reverse polarity protection
Load overload protection
Load short circuit protection

APPLICATION SCOPE

  • DIY Off-Grid Solar
  • Solar Powered Homestead, Ranch, or Farm
  • Off Grid Utilities (Solar, pumps, gates, lights)
  • Renewable Energy Projects
  • Small household/green house Light & Fan
  • Mobile, Portable and Remote Solar Generators
  • Tiny Homes, Cabins, Tool Shed, Barn, Gazebo
  • RV's, Camper, Vanlife, Heavy Equipment,
  • Trailers, ATV, Boats, Mobil Power Station
  • Weekend Camp Trips or a day at the beach
  • Tailgate Party, Sport Events, Festivals, Shows
  • Farmers Markets, Community Events, Parks
  • All small power electrical devices & PV systems.

    RELATED FILES

    User Manual(s)
