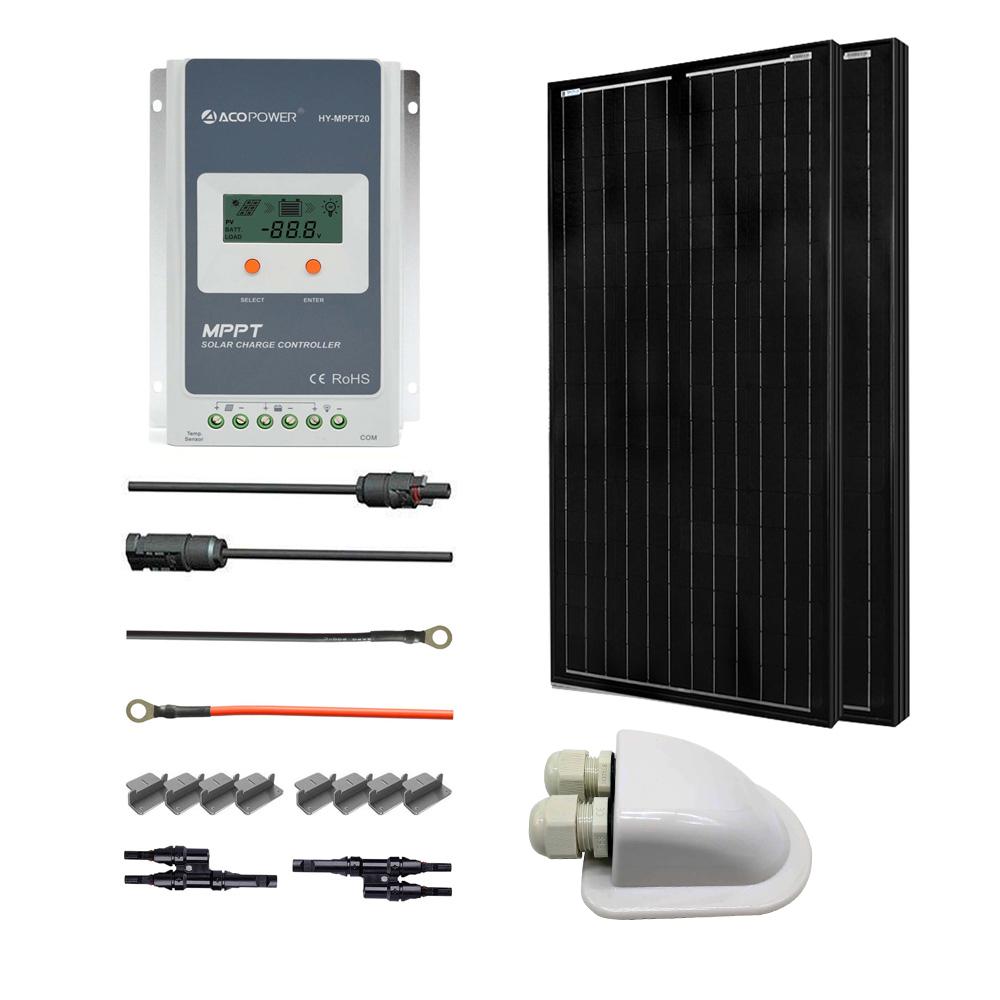

200 WATT, 12 VOLT OFF-GRID SOLAR KIT: 30 AMP MPPT CHARGE CONTROLLER & ALL BLACK MONOCRYSTALLINE PANEL(S) by ACOPower
Regular priceSale price
Unit price/ per

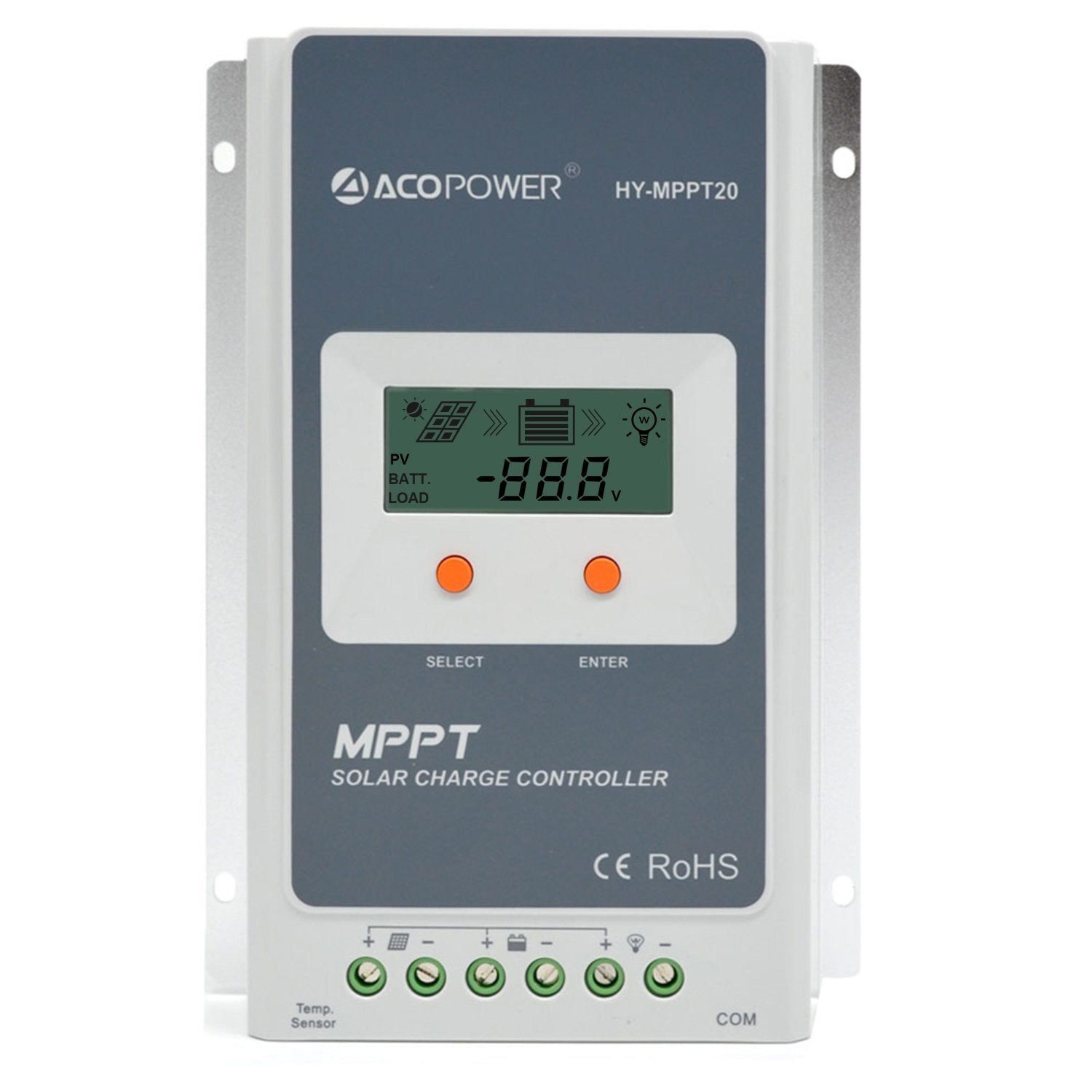

30A MPPT ACOPOWER Solar Charge Controller: ACOPower MPPT Solar Charge Controllers have a peak efficiency of 99.5% and offers user adjustable settings with a TM-50 Remote! The LCD Screen shows, voltage, solar panel status, battery state of charge, and DC load draw. See Image in photo gallery for all LCD Screen readouts. Compatible with lead acid, AGM, gel, and lithium batteries. Max Charge Rate: 390W/12V 780W/24V
MPPT 30A ACOPOWER Charge Controller Overview Advanced MPPT technology, much more efficient than PWM especially when wiring Panels in "Series", where Voltage increases, because the MPPT technology converts the excess Voltage to Amperage allowing a continuous Wattage output with minimal energy loss. (Remember: Voltage x Amperage = Wattage)
Features High tracking efficiency no less than 99.5% Peak conversion efficiency of 98% Multi-function LCD displays system information intuitively Fully adjustable charging and battery parameters via MT-50 remote meter or PC. User programmable for battery types: Lead-acid, Flood, AGM, Lithium Load Control, Timing and Input/Output Graphing. 3-Stage charge with PWM output Common positive grounding design RS485 port with industrial standard MODBUS open architecture

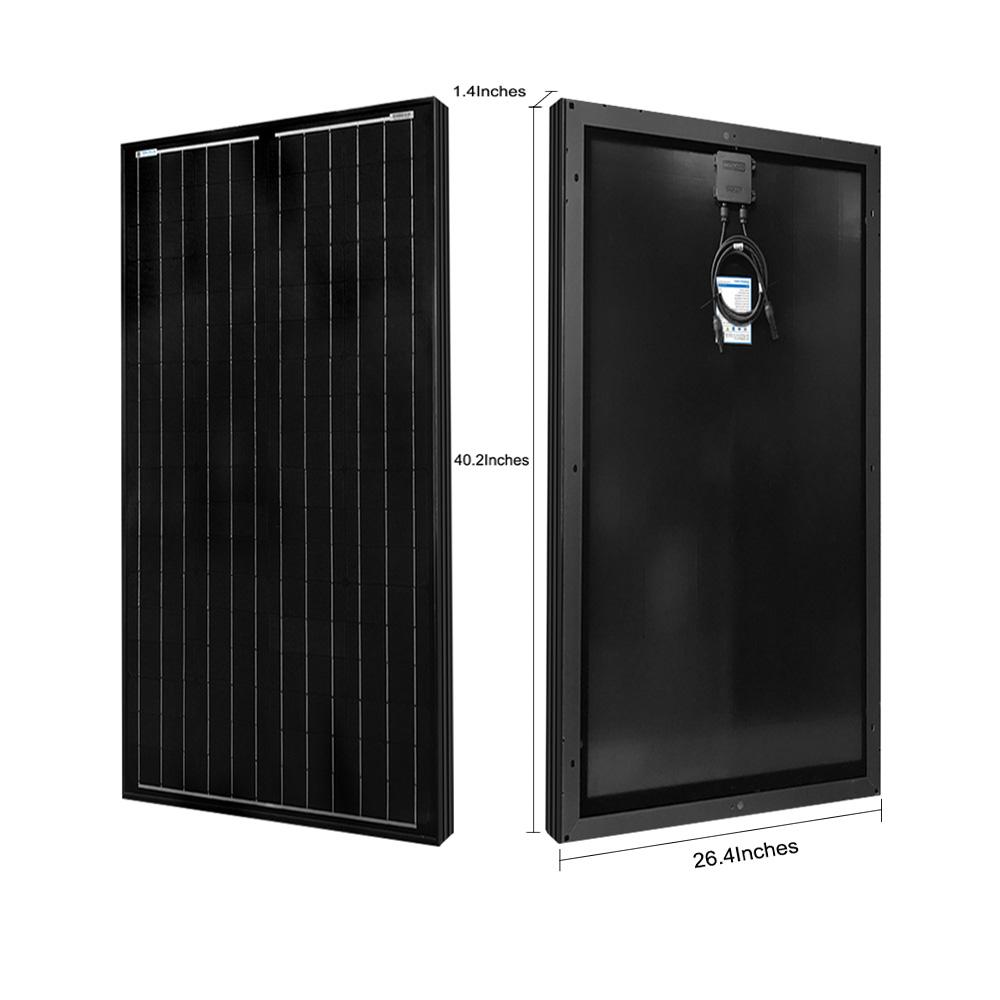

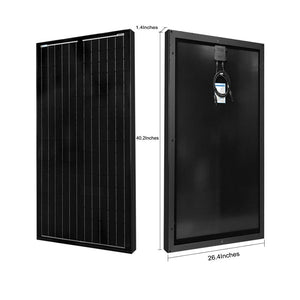

Overview: Monocrystalline Solar Panel, provides up to 100 Watts (17.48Vx5.72A) continuous power output. Basic component for your Homestead, Tiny Home and Off-Grid Solar Energy Systems. Properties: Anodized Aluminum Frame, Low-Iron Tempered Glass, and Waterproof IP-65 Rated Junction Box which all contribute to long term reliable power. Warranty: 5 years workshop warranty and 20 years output warranty. Based in California, technical supports and customer service are guaranteed.
Peak Power (Pmax): 100W Module Efficiency: 15.15% Open - Circuit Voltage(Voc): 22.0V Optimum Circuit Voltage(Vmp): 17.48V Short Circuit Current(Isc): 6.14A Optimum Circuit Current(Imp): 5.71A Power Tolerance Range:±3% Snow loads resistance: 2400 pa Test condition: 1000W/m², AM1.5,25℃ Maximum System Voltage DC: 1000V Maximum SeriesFuse/CurrentRating: 10A Dimension: 1020x670x35mm (40.2x26.4x1.4 in) Weigh: 9.5Kg (20.9lbs)
