3000 Watt Inverter Charger By Renogy
Specifications
Continuous/peak Power Rating: 3000W/9000W
AC Output Voltage Range: 100~120VAC configurable, 5V interval
Output Frequency (Nominal): 50/60 Hz ± 0.1%
Output Current 5-75A configurable, 5A intervals
Nominal Input Voltage 120 VAC
Input Voltage Range 90-138 VAC
Transfer Rating: 30A
Operating Temperature Range: 0°F - 104°F
Dimensions: 510 x 285 x 193 mm / 20.1 x 11.2 x 7.6 in
Weight: 63.5 lbs / 28.8 Kg
- Please Note: The listed dimensions we provide are solely the device body dimensions. Please do reserve space for cable grommets and installing cables.

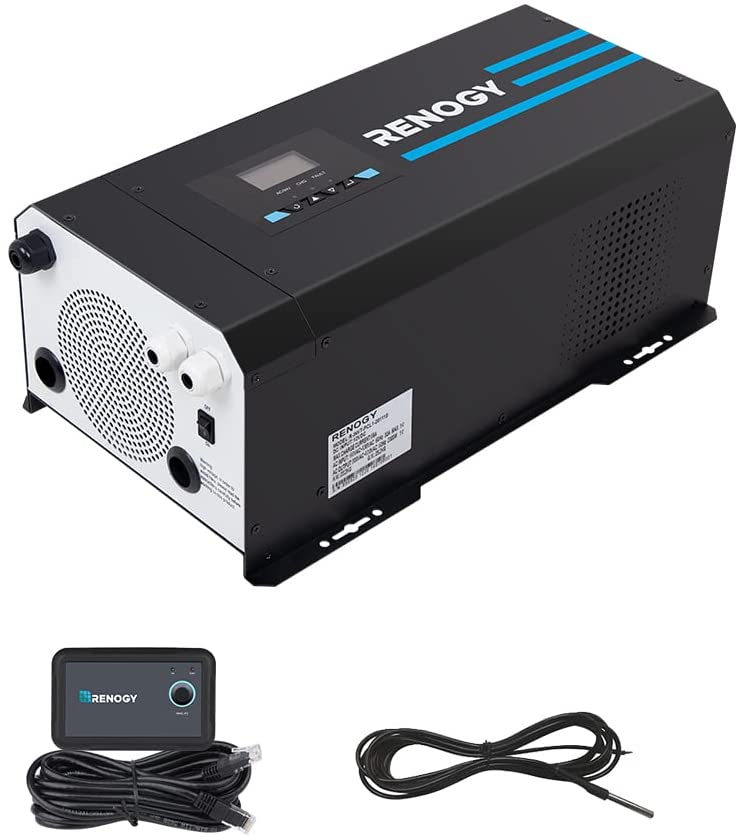

The Renogy 3000W Pure Sine Wave Inverter Charger w/ LCD Display is ideal for RV or standalone.
The advanced Renogy Pure Sine Wave technology will protect and extend the life of your electronics and appliances.
The Renogy 3000W Pure Sine Wave Inverter Charger not only acts as a DC to AC inverter that allows you to power your household appliances but also charges and maintains a battery bank when connected to shore power and is now compatible with Lithium batteries. With a low transfer time, power remains uninterrupted when switching from the battery to shore power. The Renogy 3000W Pure Sine Wave Inverter Charger is a perfect backup power source!
Accessories:
- 9.9ft Battery Temperature Sensor
- 16.4ft Wired Remote Control (Dimensions: 2.8 x 4.3 x 1.3 in)
|
|
|
|
|---|---|---|
BUILT-IN 4-STAGE CHARGERNot only acts as a DC to AC inverter, but also charges and maintains a battery bank when connected to shore power. Built-in 4-Stage(Bulk stage, Boost stage, Float stage, and Equalization) battery charger with a configurable charging current between 5A and 75A can make sure it optimally and automatically charge to 100%. It only takes 1.5 hours to fully charge a 100Ah battery. |
PROTECT YOUR ELECTRONICSAdvanced Pure Sine Wave technology provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, which is especially suitable for sensitive electrical appliances. |
COMPATIBLE WITH VARIOUS BATTERIESPowerful versatility, it is ready for 12V Gel, AGM, Sealed Lead Acid (SLA), Flooded (FLD), Calcium (CAL), Lithium-iron Phosphate (LI), and programmable for custom batteries through the USER type. |
|
|
|
|
|---|---|---|
LCD DISPLAY PANELThe LCD display can visually see the status of the inverter and perform programmable operations. The PCL inverter charger series is fully programmable with more than 20 features that can be customized such as input/output voltage range and battery charging current. |
EASY TO USEThis inverter comes with a 16.4ft remote control and a 9.9ft battery temperature sensor. The Temperature Sensor can compensate the battery voltage affected by temperature so that the charger recognizes the voltage more accurately and assures stable and constant charging to the battery. |
MAIN PANEL DISPLAYTo Access the main panel, twist the terminals on the outside of the side panel. Steps as follows: 1. Flip inverter power to the 'OFF' position 2. Twist the terminals along the edge of the side plate 3. Gently remove DC Side plate to expose DC Terminals 4. Connect the positive and negative DC Cables to their respective terminals and run them through the side panel |
- 【BUILT-IN 4-STAGE CHARGER】The Renogy pure sine wave inverter charger not only acts as a DC to AC inverter, but also charges and maintains a battery bank when connected to shore power. With built-in 4-Stage(Bulk stage, Boost stage, Float stage, and Equalization) battery charger, it can optimally and automatically charge to 100%.
- 【POWERFUL OUTPUT】With a conversion efficiency greater than 90%, adjustable 50/60Hz output, the inverter charger provides 3000W continuous power, and 9000W surge power to easily power your daily electrical appliances.
- 【PROTECT YOUR ELECTRONICS】Advanced Pure Sine Wave technology provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, which is especially suitable for sensitive electrical appliances.
- 【COMPATIBLE WITH VARIOUS BATTERIES】Powerful versatility, it is ready for 12V Gel, AGM, Sealed Lead Acid (SLA), Flooded (FLD), Calcium (CAL), Lithium-iron Phosphate (LI), and programmable for custom batteries through the USER type.
- 【MULTIPLE SAFETY PROTECTIONS】Offers under-voltage protection, overvoltage protection, overload protection, overheating protection, and short circuit protection to ensure safety.
