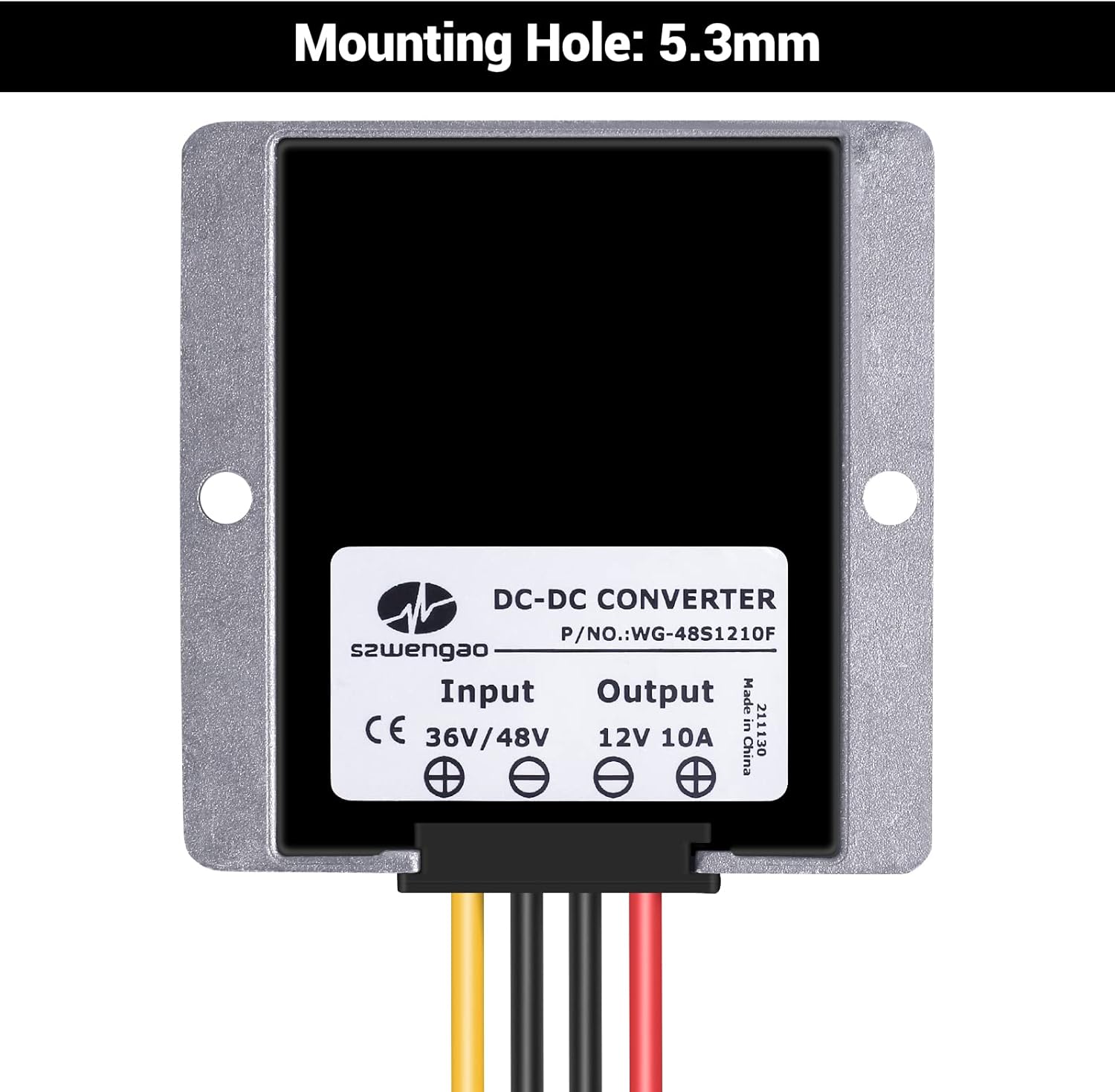

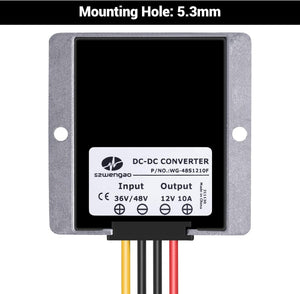

Golf Cart 48V to 12V Converter DC Voltage Buck Converter Voltage Regulator/step down IP68 with Fuse r (240W 20A)
Regular price
$35.00
Unit price
per
- [High Quality and Safe Materials]: IP68, the highest level of protection against dust, moisture, and earthquake resistance. Featuring a high-quality aluminum alloy housing for extended service life and excellent thermal conductivity, ensuring superior heat dissipation performance.
- [Wiring Method]: Connect the red wire to the positive terminal (BAT+), the black wire to the negative terminal (BAT-), and the yellow wire to the 12V load. Connect the adjacent black wire to the load's ground (GND).
- [Stability]: To ensure power supply stability, utilize pure copper inductors for effective filtering and oscillation prevention. Built in over-load, over-current, over-temperature and short-circuit comprehensive protection
- [Wide Range of Applications]: Appropriate for golf carts, forklifts, trucks, LED lights, displays, car audio speakers, monitoring systems, motors, and DIY projects.

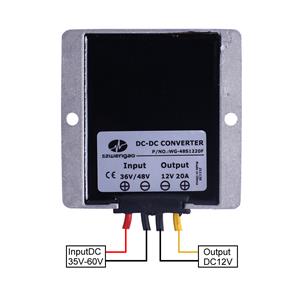

- [Input Voltage Range]: Input Voltage Range: DC 35-60V (36V/48V); Output Voltage: 12V(Fixed Output).The input voltage must meet the requirements whith DC30-60V
Warning:
- Never connect to solar panel or wind turbine.
- Never charge the battery.
- Never reverse the polarity.
- Keep good air convection.

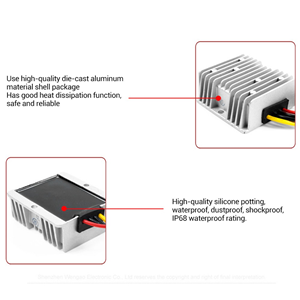

- High quality aluminum alloy shell package,good heat dissipation;

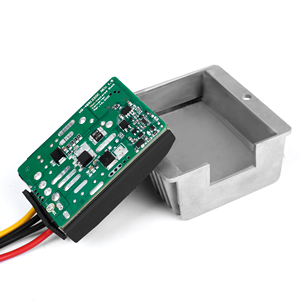

- Organic silica gel potting, IP68 grade
- Over-load, over-current,Over-temperature,output short-circuit protection;

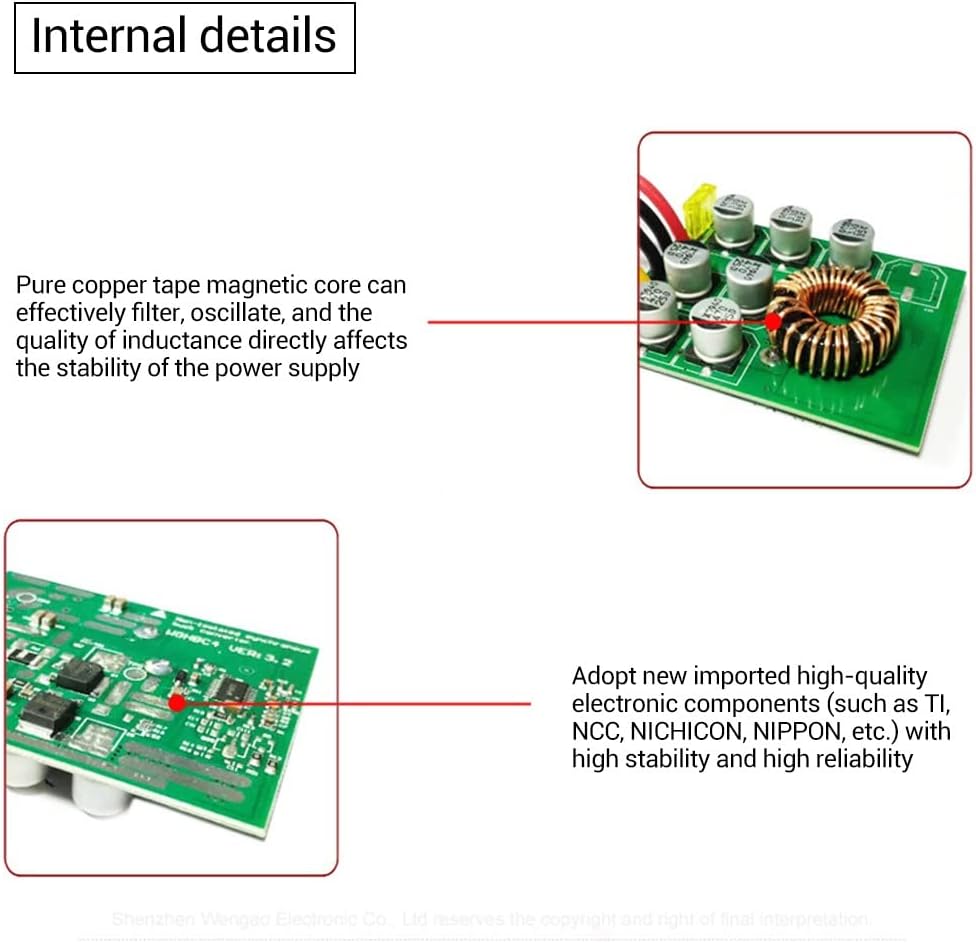

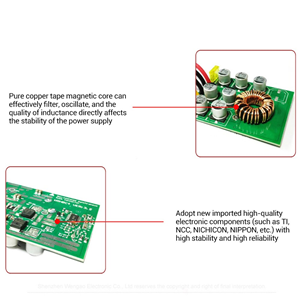

- Pure copper wire inductance, effective filtering, oscillating, notching, ensuring the stability of the power supply.

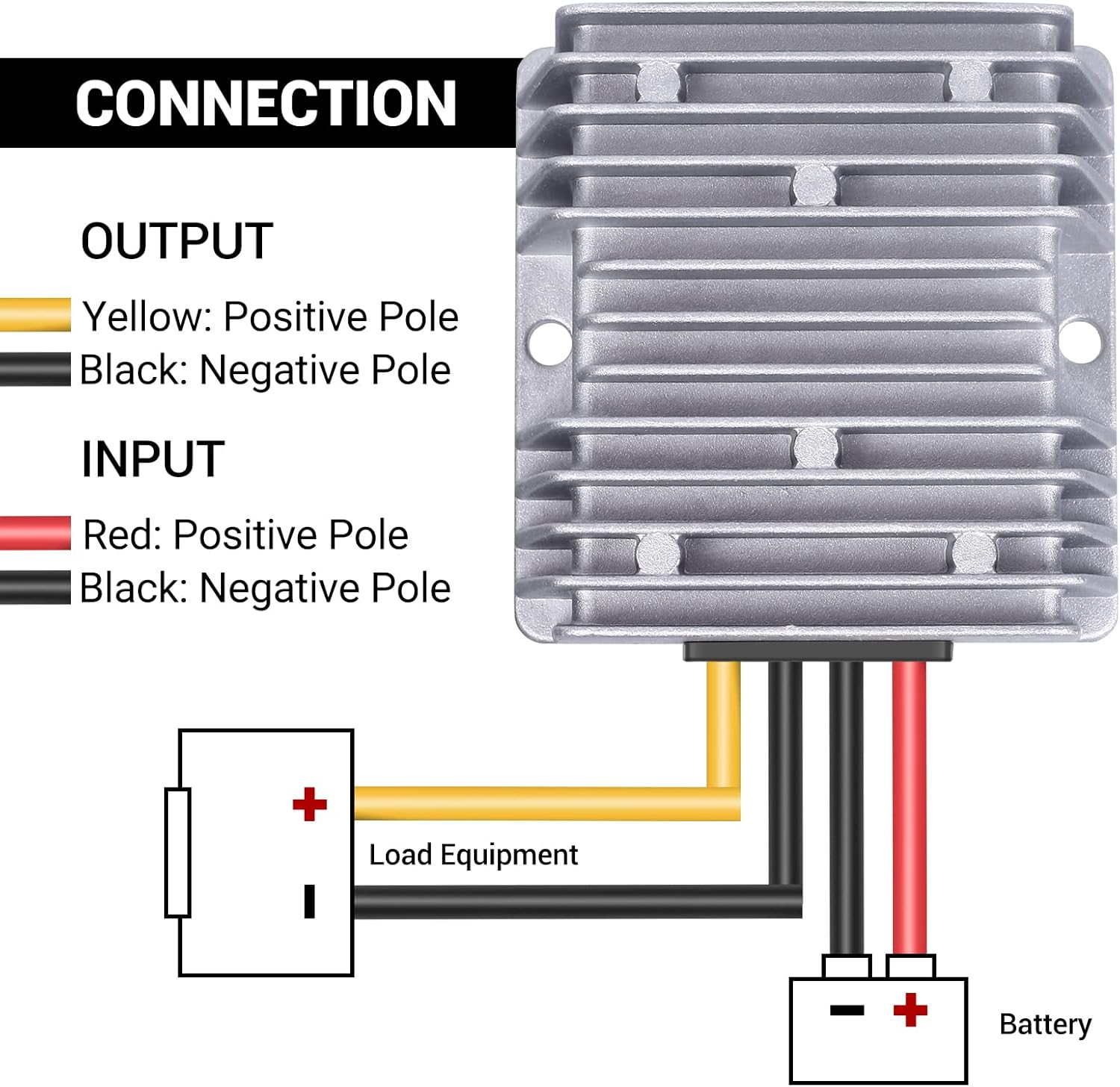

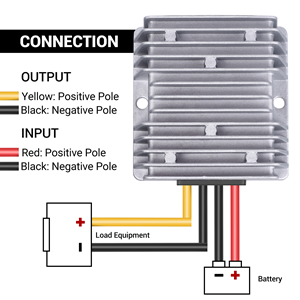

Connection:
- Red to bat+
- Black to bat - (next to red)
- Yellow to 12v load
- Black (next to yellow) to load GND
Reminder:
- It's normal spark when you connect converter to battery.
- It's normal that case is hot and when it's over 185℉, the converter protects.
- When temperature is over 113℉, touch the mental case and will feel very hot.
Tips: How to choose correct current for loads?
- For example, if max current of your load device is 10A, then choose 10A/0.8=12.5A at least for resistive loads.
- If load device is motor or compressor, then you may choose 10A/0.5=20A according to real test result since motor and compressor starting current may be 2-3 times than nominal current.
