ACOPOWER 50W 12V Solar Charger Kit, 10A Charge Controller with Alligator Clips
- Solar Kit : Used High Modules Conversion Efficiency 50W Poly Solar Panel. Provides Up to 50W Designed specifically for customers new to solar. Easy and convenient to install with pre-drilled holes on panels
- Upgraded Charge Controller : It has been Upgraded to Positive Grounding Controller New 10A PWM Charge Controller .The 10A charge controller with USB output for 12V battery charge. You Can Expand Your System Up to a Maximum of 2. Positive Grounding Controller Ensures the Broader Off-Grid Applications and Safety.
- Best free & Clean Power Resource Used in Various Off-Grid Applications that Include 12 arrays, WaterPumping Systems, Signaling Systems and other Off-Grid
- Safety: Comes with a 50W 12V polycrystalline solar panel, a 10A PWM Charge Controller with SAE Connectors and Alligator Clamps . 20ft cable from charge controller to battery; SAE connector for pre-wired 2 Pin socket in sidewall of RV；Alligator clamps- to clip to your battery in 10 seconds with protection. The alligator clamps won't have voltage and current until a proper battery is connected, avoid any touching accidents.
- Application: Basic Component for Off-Grid Solar Panel 12V/24V/36V/48V System, Great for Off-grid applications, Such as RVs, Trailers, Boats, Sheds, Cabins, Caravan, Cars, Green House Solar Systems. Withstand High Wind (2400Pa) and Snow Loads (5400Pa); Lightweight Anodized Aluminum Frame and Reinforced Safety and anti-Reflection Coated Glass 3.2mm Thick and Waterproof IP-65 Rated Junction Box which Allows The Panel Lasts for a Long Time.
- Warranty: 5 years material and workmanship warranty and 25 years power output warranty; Accessories, 1 year material & workmanship warranty.
Product Info.
ACOPOWER 50W Polycrystalline Solar Panel is the Key Component to a system when going solar Off –Grid system. These panels are relatively compact and are a breeze to set up. Whether you are going camping in the mountains or taking a trip to the beach, this panel can be a great start to your off-grid system! This panel has several uses including marine, dry camp, RVS and other off-grid applications. ACOPOWER Provides cost-effective solar panels and Free Professional Engineering Services.
Battery Voltage:12V
Item Condition: ACOPOWER Brand New
Manufactory Location: Made in United States
Product Specification
Peak Power (Pmax):50W
Short Circuit current (Isc): 3.2A
Open circuit voltage (Voc): 20.8V
Optimum operating current (Imp): 2.94A
Optimum power voltage (Vmp): 17.0V
Weight:9.7 lb
Dimension:26.4*21.7*1.4 Inch
All technical data at STC
Test condition:1000W/m², AM1.5,25℃

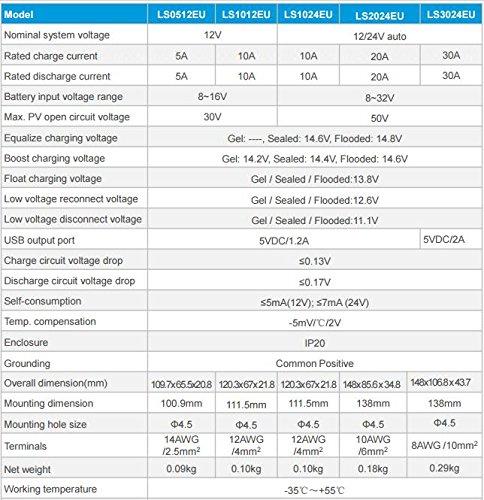

10A PWM Charge Controller (Positive Grounded)
Working Voltage:12V
Working Current:10A
Working Mode: PWM Charging
Add a +5V/1.2A USB Terminal Output
Battery Type Options: Sealed, Gel, Flooded,
Package List:

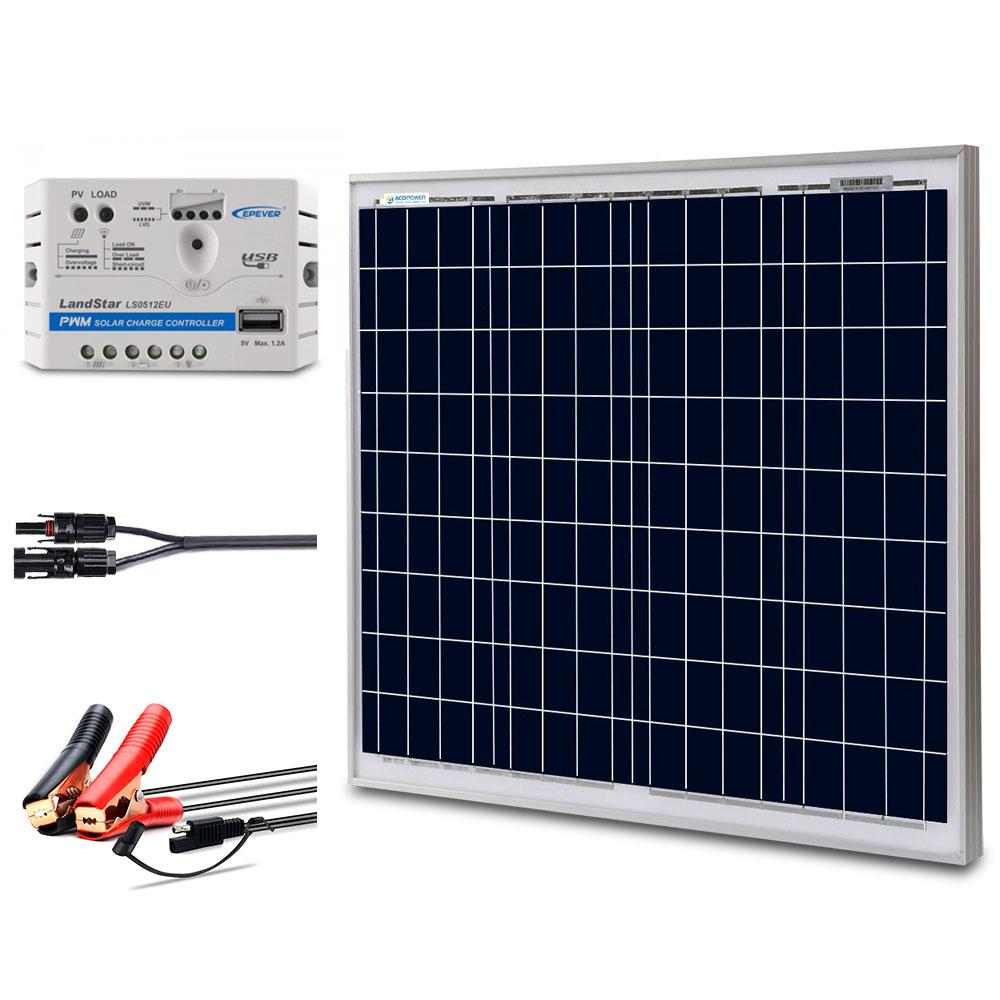

1 x LS0512EU Solar Charging Controller with Alligator Clips
1 x HY050-12P Solar Panel
2 x User Manual
Application Scope
Courtyard lighting.
Small household lighting system.
Street lighting.
Portable solar power.
Solar Pump
All small power electrical devices & small PV system.
