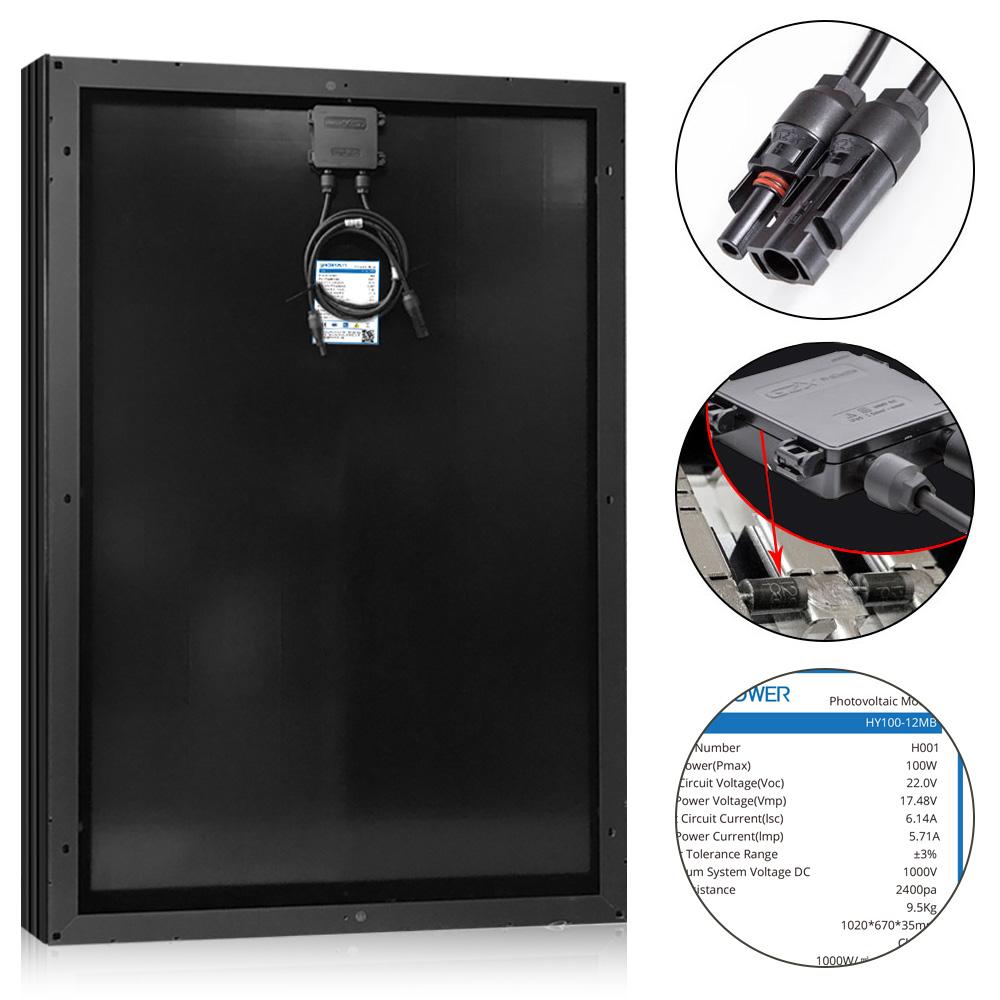

PRODUCT SPECIFICATIONS
Peak Power (Pmax): 100W
Module Efficiency: 15.15%
Open - Circuit Voltage(Voc): 22.0V
Optimum Circuit Voltage(Vmp): 17.48V
Short Circuit Current(Isc): 6.14A
Optimum Circuit Current(Imp): 5.71A
Power Tolerance Range:±3%
Snow loads resistance: 2400 pa
Test condition: 1000W/m², AM1.5,25℃
Maximum System Voltage DC: 1000V
Maximum SeriesFuse/CurrentRating: 10A

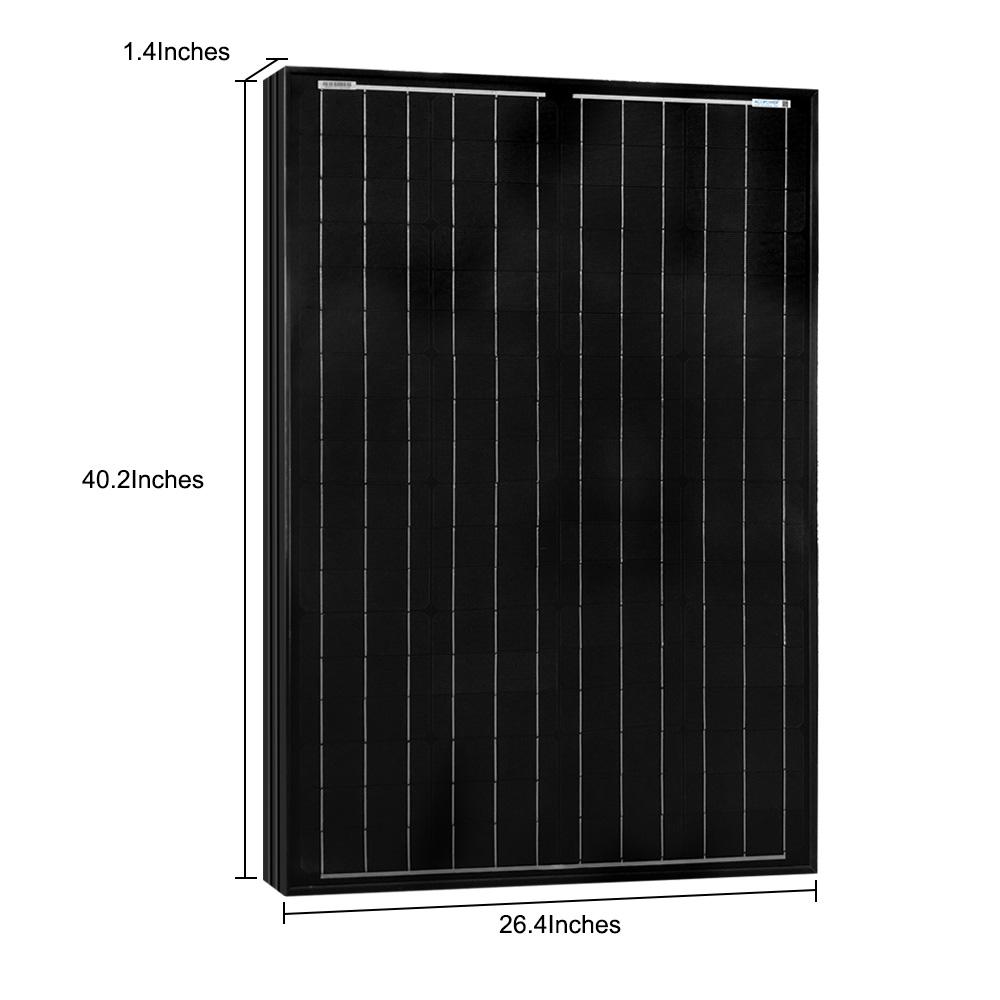

Dimension: 1020x670x35mm (40.2x26.4x1.4 in)
Weigh: 9.5Kg (20.9lbs)
APPLICATION SCOPE

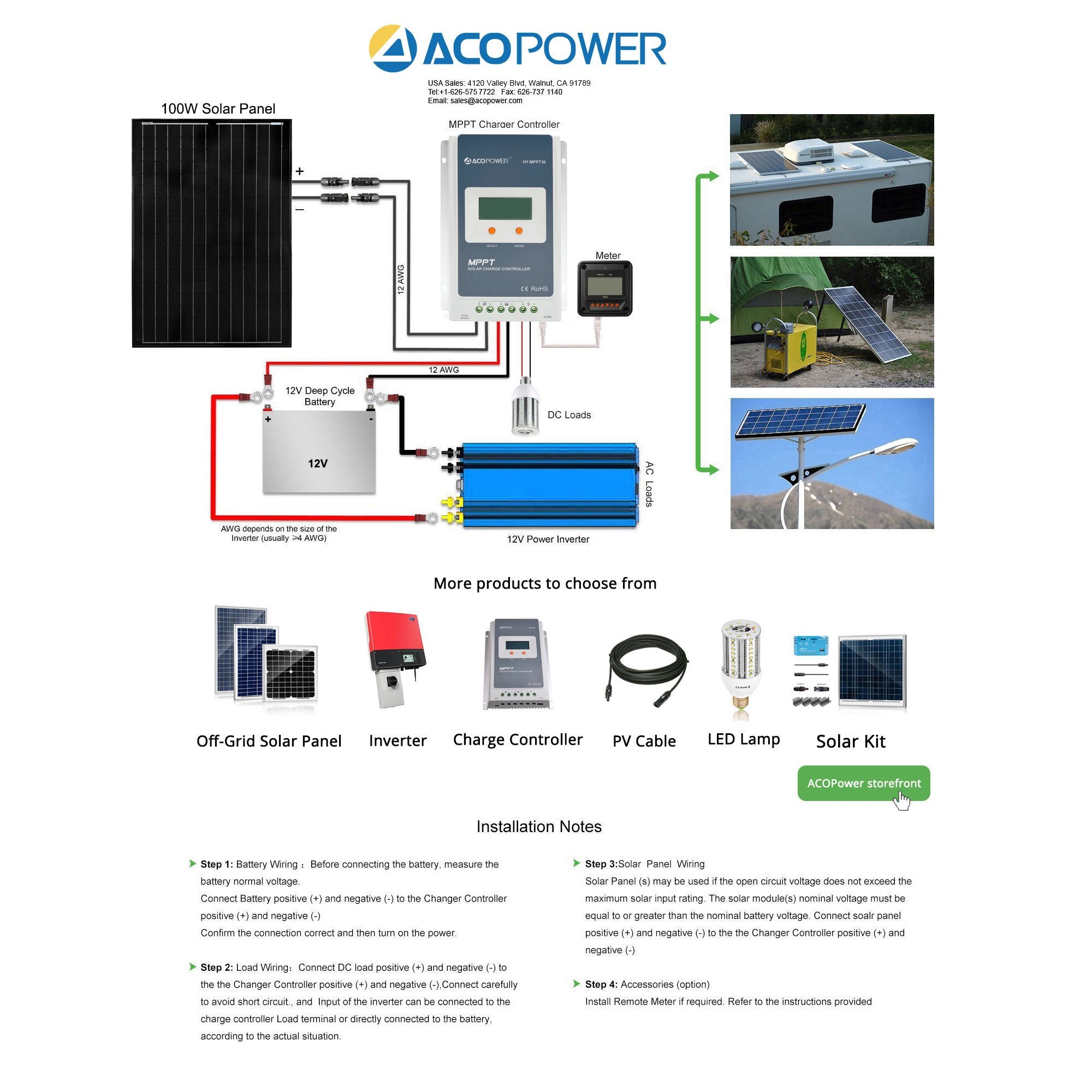

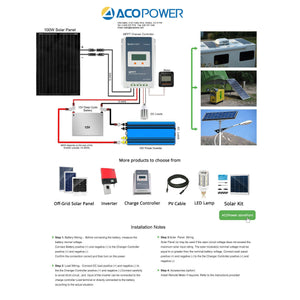

- DIY Off-Grid Solar Energy Systems
- Homestead, Ranch, Cabin
- Tiny Home, Tool Shed, Barn, Gazebo
- RV, Camper, Vanlife, Heavy Equipment,
- Trailers, ATV, Boats, Mobil Power Station
- Off Grid Utilities (pumps, gates, lights)
- Renewable Energy Projects
- Small Household/Green House Lights & Fans
- Mobile, Portable and Remote Solar Generators
- Weekend Camp Trips or a day at the beach
- Tailgate Party, Sport Events, Festivals, Shows
- Farmers Markets, Community Events, Parks,
- All small power electrical devices & PV systems.
