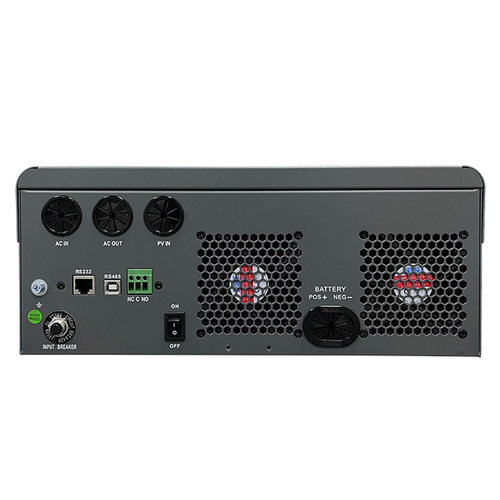

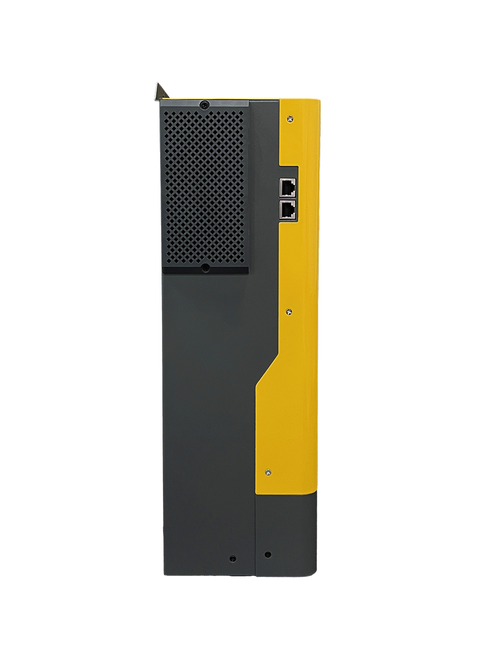

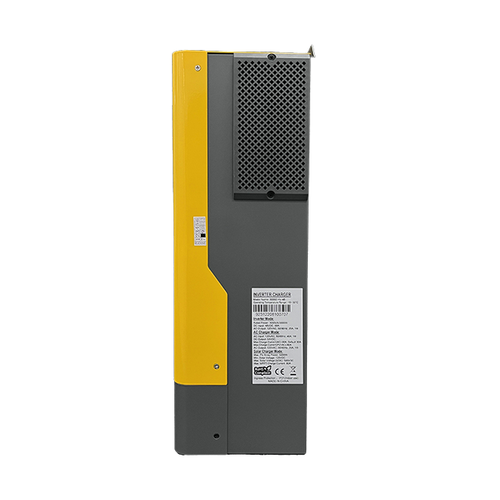

EG4 | All- in- One; 3000EHV-48 Inverter/Charger/MPPT
3000EHV-48's Recent Design Improvements(V2): à
- Larger Battery Terminal Connections(Supports up to 2 AWG)
- Minor Improvements to the exterior design
- Fully compatible with V1 units(may require a simple firmware update, can be found on www.eg4electronics.com)
The EG4 3000EHV-48 is a 3000W all-in-one, multi-function inverter/charger; it combines the capabilities of an inverter, MPPT solar charger, and battery charger to offer uninterrupted power support in a single, portable-sized package. Its comprehensive LCD display offers user-configurable and easy-accessible button operation including battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
This compact powerhouse is perfect for small barn builds and small critical loads panels as it easily supports lights, an average fridge/freeze, or a 9K BTU Mini Split.
BONUS KIT INCLUDED ($149 value)
- Wifi Stick with Remote Settings Adjustment
- 125A UL listed Nader Breaker and Din Bracket
- 6Ft 4 AWG Red and Black Battery Cables
Features:
Built for Off-Grid
- 3000W Continuous Output
- 500 VDC Max Input
- Parallel up to 12 Units for a 36kW System
- Ideal for Small Barn, Cabin, RV Builds, Critical Load Panels, or Mini Split Air Conditioners
- BMS Communication Available With All EG4 Batteries
- Upgraded Active Cooling & Circuit Components(When compared to competing models)
Performance Components
- Lightweight
- Smaller Footprint Than Other Comparable Models
- Overload Protection
- Overtemperature Protection
- Short Circuit Protection
- User Customization via LCD Display
Reliability & Safety Testing
3-Year Warranty Supported and serviced out of Texas
Manuals and Documents
- Reviews
- Questions
Thank you for submitting a review!
Your input is very much appreciated. Share it with your friends so they can enjoy it too!
Perfect Fit
This little utility shed has come together quite nicely, everything needed for the Yurt and Camper hook ups. Power, Running Water, and beautiful wilderness. Solar Panels - 1800W P = (6) 300 Watt Panels - Ground Mount All-In-One: EG4 3000 EHV Input - PV Input 500V - Charge Current 60A (3000W Max) - Generator Tie Backup Output - 3000 Watt Continues, @ 120V - 5000 Watt Surge @ 120V Battery Storage - 5kWh LiFePO4 - Bluetooth Monitoring - 7000 Cycle Life Tankless Hot Water heater
