PRODUCT DESCRIPTION

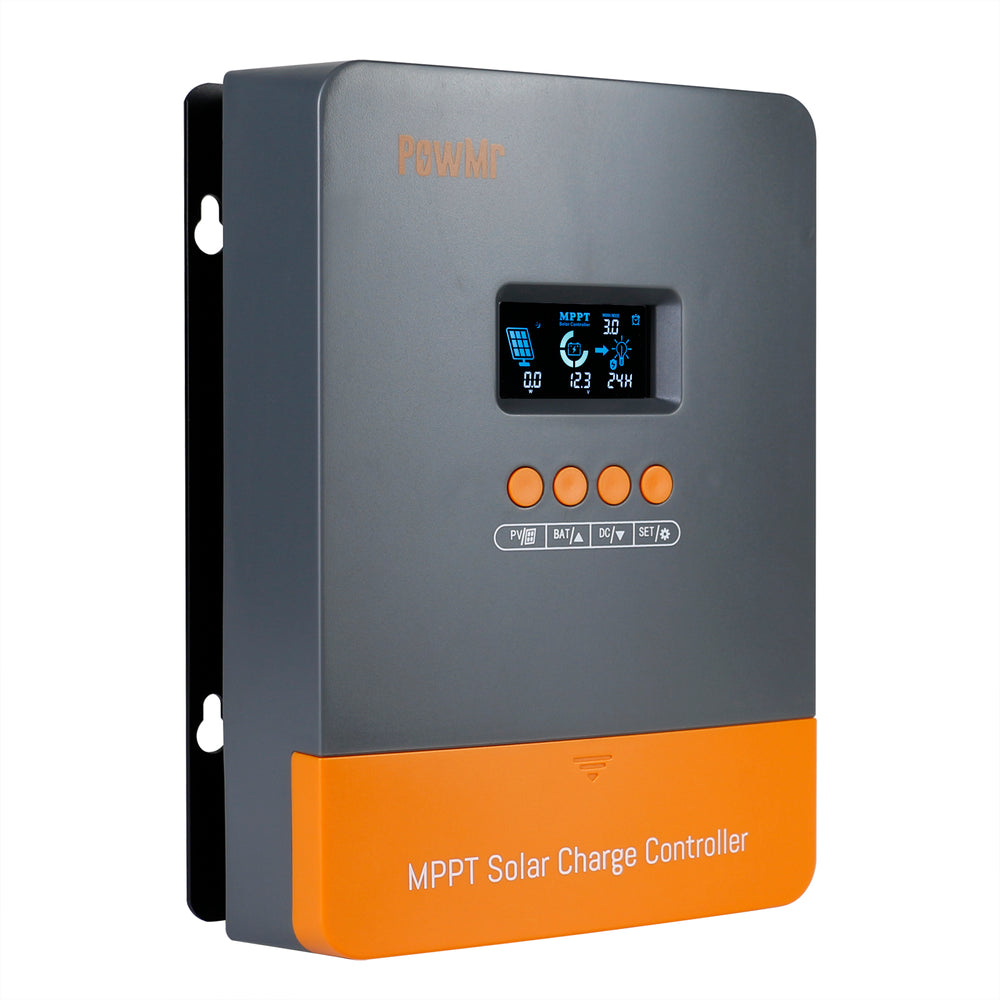

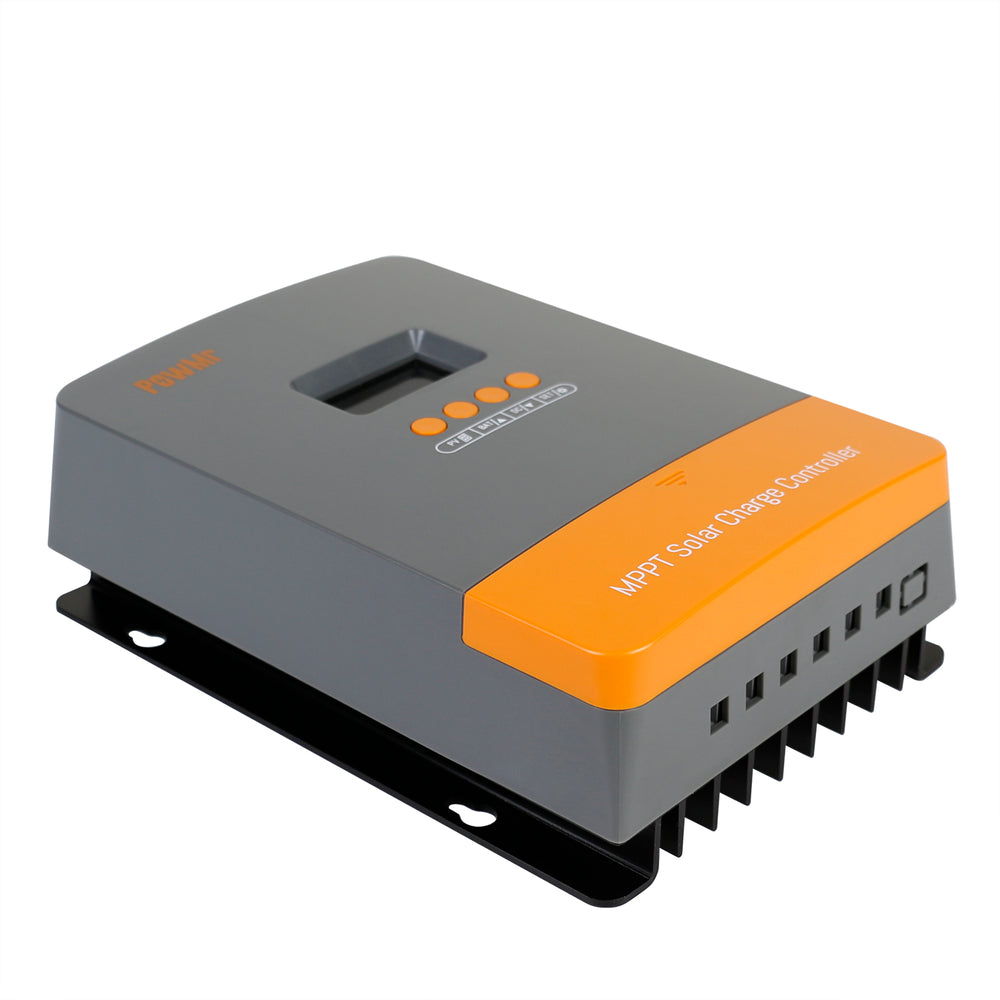

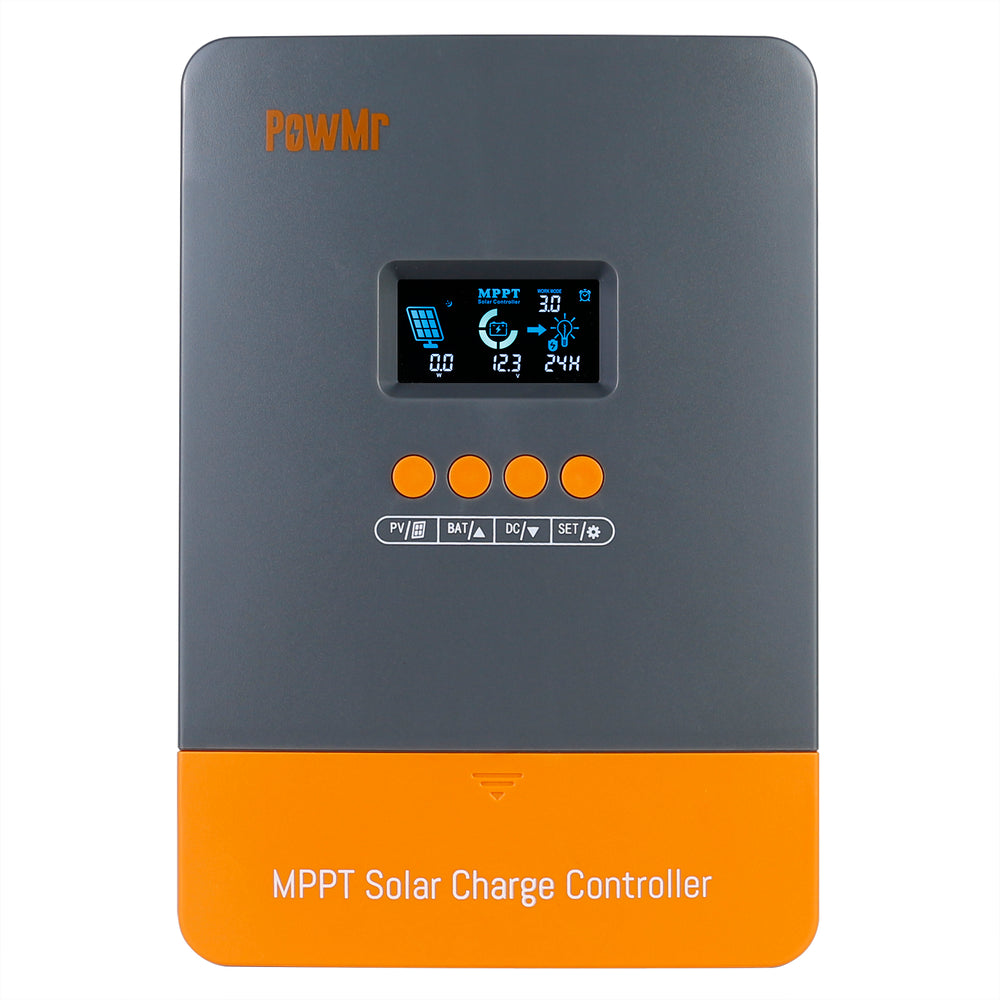

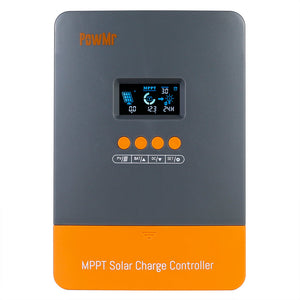

Pow-60-Pro MPPT Charge Controller
PV MaX: 150VOC
Charge Current: 60A
Overview PowMr Solar Charge Controllers have a peak efficiency of 99.5% and offers user default settings! The LCD Screen shows, voltage, solar panel status, battery state of charge, and DC load draw. See Image in photo gallery for all LCD Screen readouts. Compatible with lead acid, AGM, gel, and lithium batteries. Max Charge Rate: 12V/800W, 24V/1600W, 48v/3200W
Advanced MPPT technology, much more efficient than PWM especially when wiring Panels in "Series", where Voltage increases, because the MPPT technology converts the excess Voltage to Amperage allowing a continuous Wattage output with minimal energy loss. (Remember: Voltage x Amperage = Wattage)
Features
- High tracking efficiency no less than 99.5%
- Peak conversion efficiency of 98%
- Multi-function LCD displays system information intuitively
- Fully adjustable charging and battery parameters via MT-50 remote meter or PC.
- User programmable for battery types: Lead-acid, Flood, AGM, Lithium
- Load Control, Timing and Input/Output Graphing.
- 3-Stage charge with PWM output
- Common positive grounding design
- RS485 port with industrial standard MODBUS open architecture.
Technical Specs
Rated charge current: 60A
Max Charging Output : 12V/800W, 24V/2600W, 48v/3200W
Max.PV open circuit voltage: 150VDC
Battery voltage range: 9V~70V
Enclosure: IP32
Charge Controller Electronic protections
PV short circuit protection
PV reverse polarity protection
Battery over voltage protection
Battery over discharge protection
Battery reverse polarity protection
Load overload protection
Load short circuit protection
APPLICATION SCOPE
- Powering a Homestead, Ranch, or Farm
- Off Grid Utilities (pumps, gates, lights)
- Renewable Energy Projects
- Small household/green house Light & Fan
- Mobile, Portable and Remote Solar Generators
- Tiny Homes, Cabins, Tool Shed, Barn, Gazebo
- RV's, Camper, Vanlife, Heavy Equipment,
- Trailers, ATV, Boats, Mobil Power Station
- Weekend Camp Trips or a day at the beach
- Tailgate Party, Sport Events, Festivals, Shows
- Farmers Markets, Community Events, Parks
- All small power electrical devices & PV systems.
