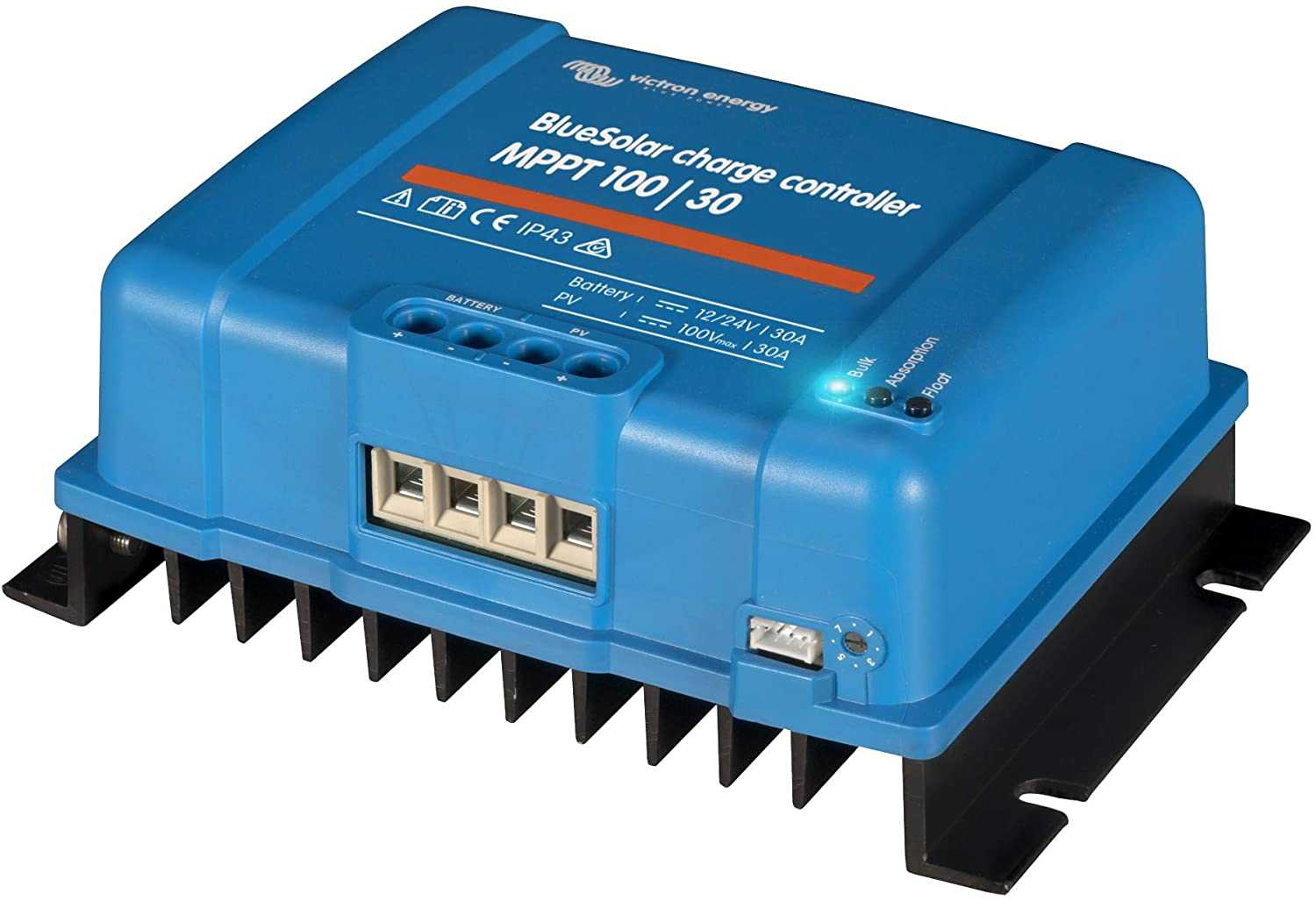

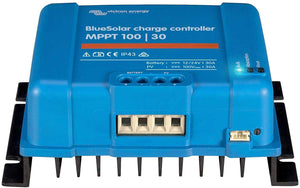

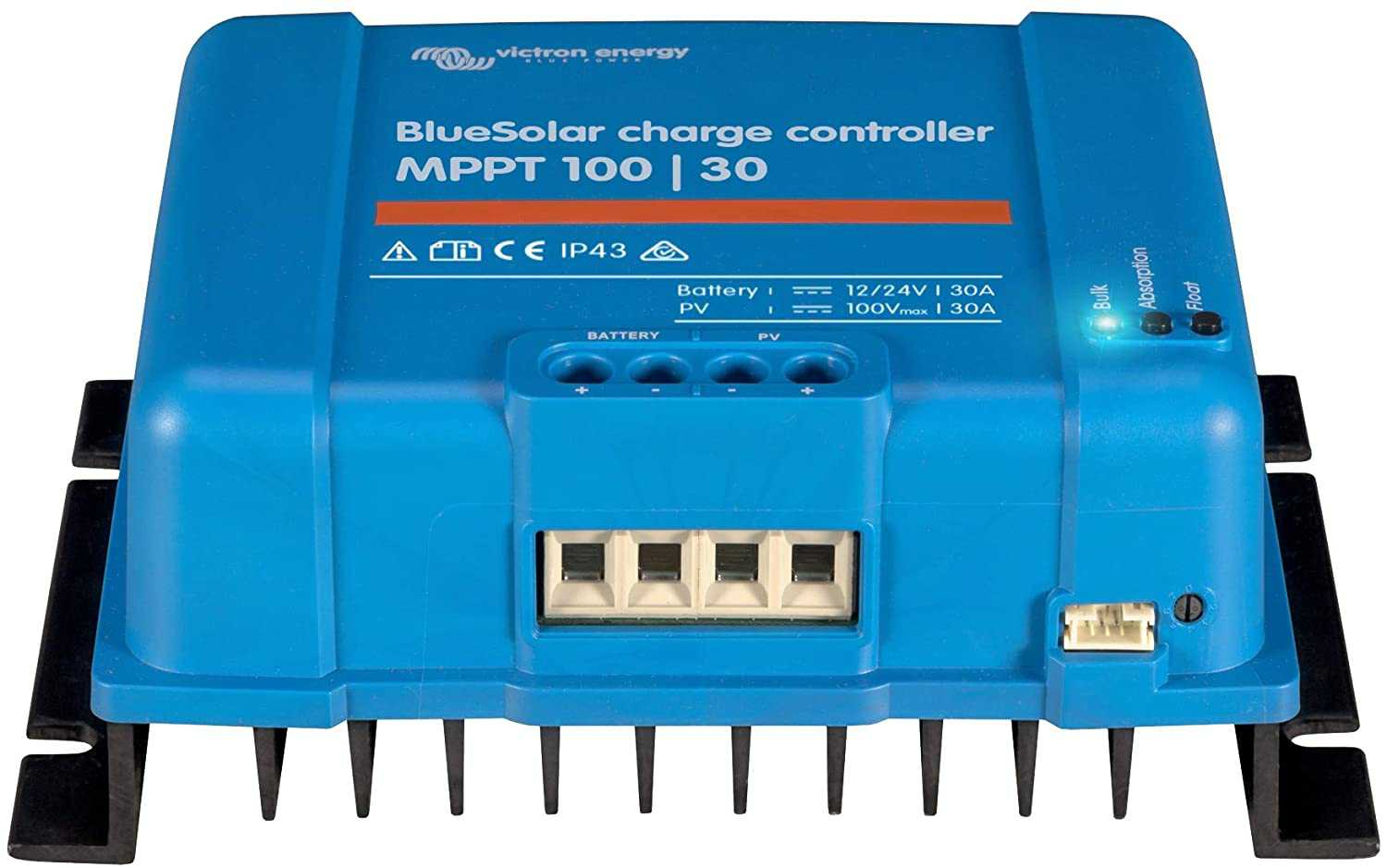

Victron 100 | 30 MPPT Smart Solar Charger 12V/24V
PRODUCT DESCRIPTION
100/30 Victron Solar Smart Charger
Overview Victron MPPT SmartSolar Charges have a peak efficiency of 99.5% and offers user adjustable settings.
Max Charge Rate: 12V/440W,24V/880W
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
Advanced MPPT technology, much more efficient than PWM especially when wiring Panels in "Series", where Voltage increases, because the MPPT technology converts the excess Voltage to Amperage allowing a continuous Wattage output with minimal energy loss. (Remember: Voltage x Amperage = Wattage)
Technical Specs
- Battery voltage 12/24V Auto Select
- Rated charge current 30A
- Nominal PV power, 12V 1a,b) 440W
- Nominal PV power, 24V 1a,b) 880W
- Maximum PV open circuit voltage 100V
- Max. PV short circuit current 35A
- Maximum efficiency 98%
- Self-consumption 12V: 30 mA 24V: 20 m0
- Charge voltage 'absorption' Default setting: 14,4V / 28,8V (adjustable)
- Charge voltage 'float' Default setting: 13,8V / 27,6V (adjustable)
- Charge algorithm multi-stage adaptive Temperature compensation -16 mV / °C resp. -32 mV / °C
- Max Charging Output : 12V/390W,24V/780W
- Max. PV Input: 12V/1170, 24V/2340W
- Enclosure:
- Safety EN/IEC 62109-1, UL 1741, CSA C22.2
- Protection category IP43 (electronic components), IP22 (connection area)
Charge Controller Electronic protections
PV short circuit protection PV reverse polarity protection
Battery over voltage protection
Battery over discharge protection
Battery reverse polarity protection
Load overload protection
Load short circuit protection
Features
- High tracking efficiency no less than 99.5%
- Peak conversion efficiency of 98%
- Feature highlights common to all models
- Ultra-fast Maximum Power Point Tracking (MPPT).
- Advanced Maximum Power Point Detection in case of partial shading conditions.
- Outstanding conversion efficiency.
- Natural convection cooling.
- Automatic battery voltage recognition.
- Flexible charge algorithm.
- Over temperature protection and power derating when temperature is high.
Sizing options:
- Suitable for a variety of battery voltages. Most models connect to 12, 24, and 48V batteries, some only connect to 12 and 24V batteries, or only to 48V batteries.
- Charge currents rating from 10A all the way up to 100A.
- Maximum PV array Voc voltages ranging from 75V up to 250V.
- Multiple chargers can be used in parallel, for large systems we recommend to use the models with a VE.Can communication port.
PV terminal options:
- TR - one positive and one negative screw terminal.
-
MC4 - 3 pairs of paralleled MC4 connectors.
Bluetooth options:
-
SmartSolar models have Bluetooth.
BlueSolar models do not have Bluetooth. They can be retrofitted to have Bluetooth by connecting the VE.Direct Bluetooth Smart dongle. -
Advantage: The product is not Bluetooth accessible when the dongle is not connected. Note that on the SmartSolar models, Bluetooth can be disabled.
Display options:

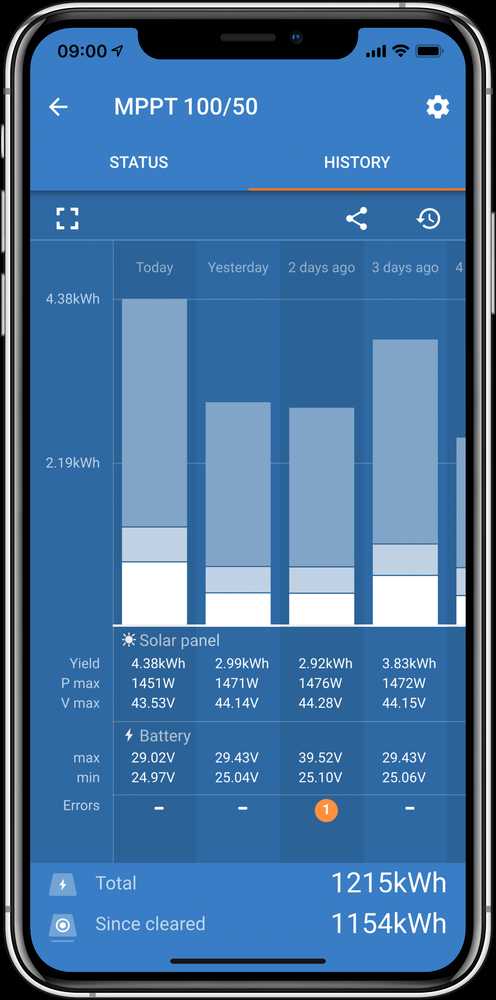

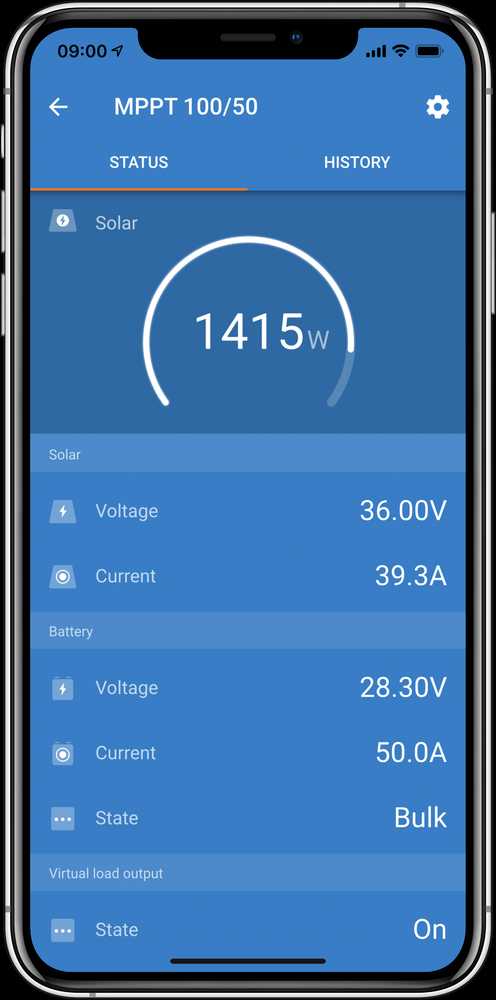

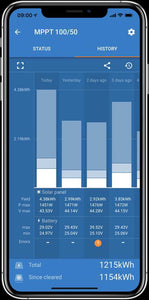

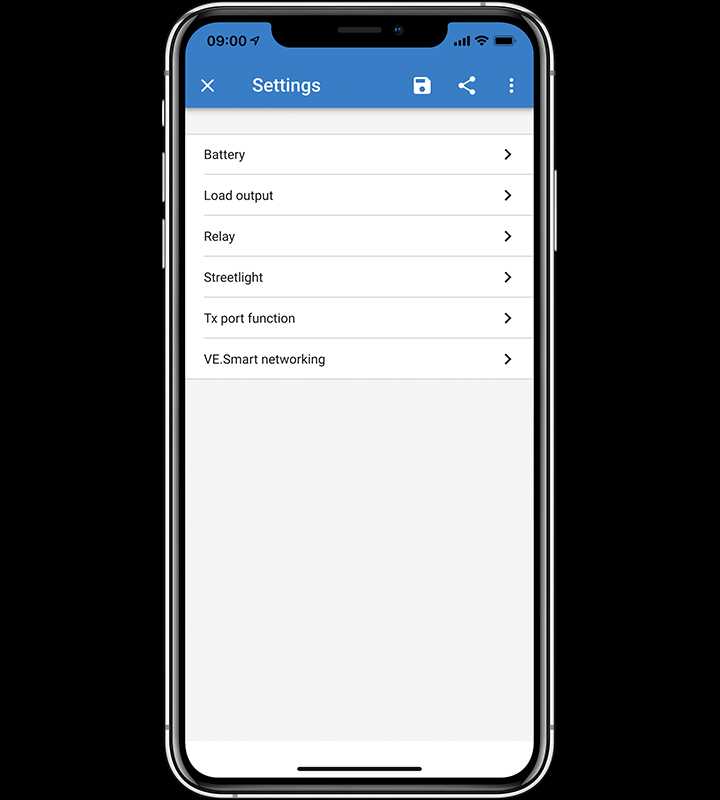

- VictronConnect Application. Connects via Bluetooth or via the VE.Direct - USB interface
- MPPT Control. Connects to all models via a VE.Direct cable
- SmartSolar Control Display. Plugs directly into the housing of the larger models
- GX device
-
VRM website (GX monitoring device needed)
Communication ports:
- VE.Direct - all models
-
VE.Direct and VE.Can - limited models. VE.Can is especially suitable for systems with multiple solar chargers. All units are simply “daisy chained” to each other with a single RJ45 cable between each unit and also between the las unit in the chain and the a GX monitoring device.
Temperature sensor options:
- Internally (all models).
- Externally via the Smart Battery Sense (only SmartSolar models). Load output options:
- Physical output - On the 10, 15 and 20A models.
-
Virtual output - via VE.Direct TX digital output cable and the BatteryProtect or a solid-state relay.
Remotely enabling and disabling the charger:
- All larger units feature the Victron standard remote on/off terminals. All models that don’t feature an onboard Remote on/off terminal can be remotely controlled by using the VE.Direct non inverting remote on/off cable – ASS030550310. Note that this prohibits using the VE.Direct port for anything
APPLICATION SCOPE
- Powering a Homestead, Ranch, or Farm
- Off Grid Utilities (pumps, gates, lights)
- Renewable Energy Projects
- Small household/green house Light & Fan
- Mobile, Portable and Remote Solar Generators
- Tiny Homes, Cabins, Tool Shed, Barn, Gazebo
- RV's, Camper, Vanlife, Heavy Equipment,
- Trailers, ATV, Boats, Mobil Power Station
- Weekend Camp Trips or a day at the beach
- Tailgate Party, Sport Events, Festivals, Shows
- Farmers Markets, Community Events, Parks
- All small power electrical devices & PV systems.
